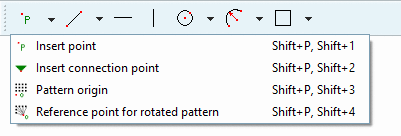

Insert point

The completely positioned point is identified in the sketch by a square frame.

Point

Insert connection point

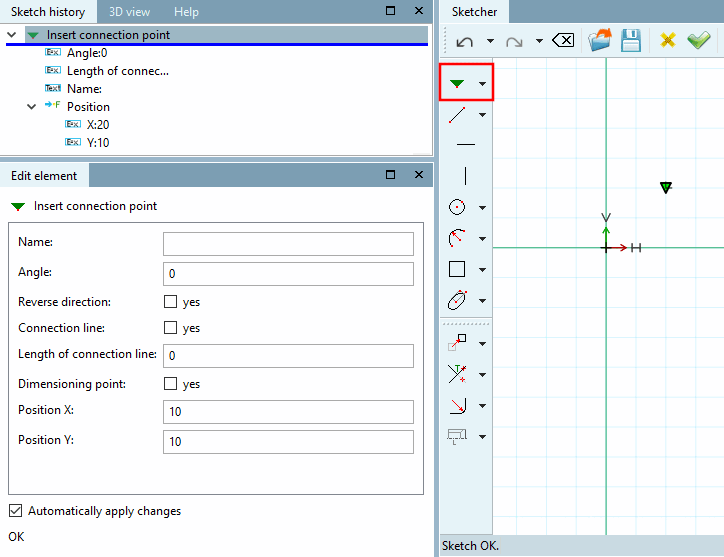

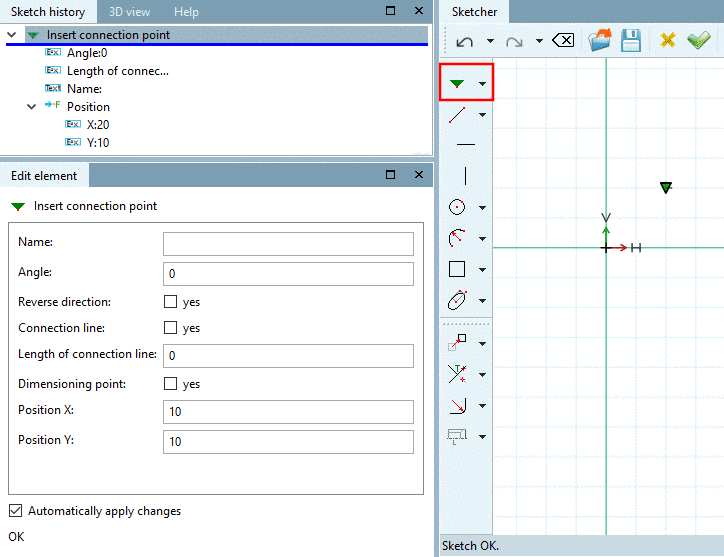

The connection point is marked with a green triangle in the drawing.

More details can be found under:

Not selected

Selected

Pattern origin

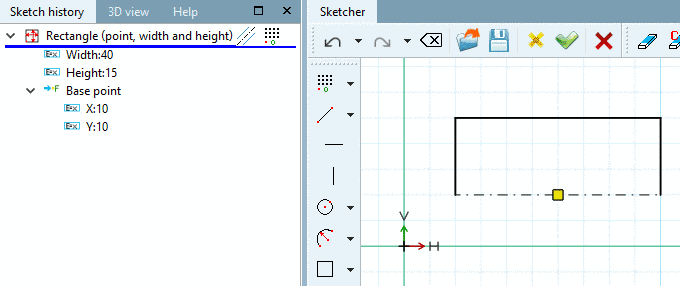

The fully positioned pattern origin is marked in the drawing by a yellow square.

The corresponding icon is displayed in the sketch history.

The point can be removed via context menu command.

See also Section 7.6.2.9.2, “Create pattern manually ”

Reference point for rotated pattern

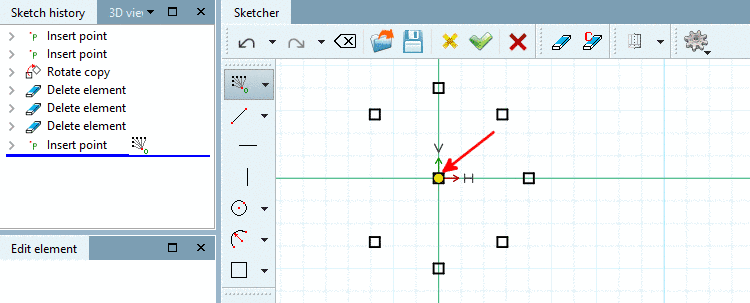

The set reference point for rotated pattern is marked by a yellow circle in the sketch.

The corresponding icon is displayed in the sketch history [Sketch history].

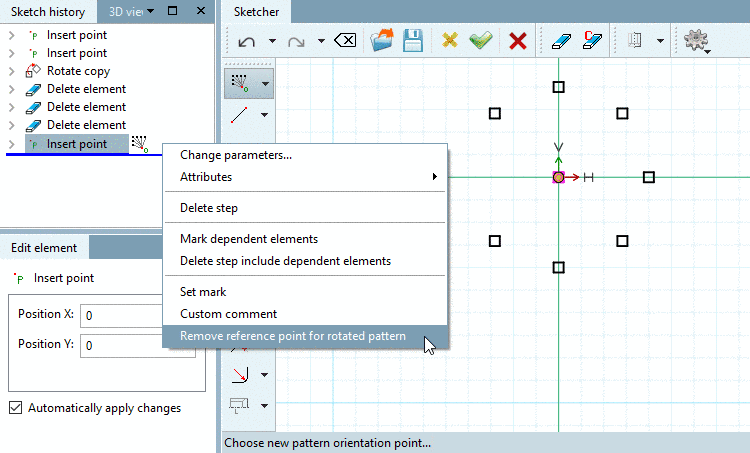

The point can be removed via the context menu command Remove reference point for rotation pattern [Remove reference point for rotated pattern].

Also see Section 7.6.2.9.2, “Create pattern manually ”.
