10.1.2.  Accessory part filter

On the tabbed page Links, alternative parts or parts/assemblies related in any way to the selected part are automatically listed - if available.

When selecting the option Accessories, in the list field, accessory parts classified as such on customer side, are displayed.

[Note]Note
  • There don't have to be accessory parts for all table rows necessarily.

  • Depending on row selection, different accessory parts can be displayed.

  • The accessory part itself can be filtered. In this case the table shows a respective icon and tooltip accessory part filter on/off top left.[a]

[a] Details on respective project creation can be found under Section 5.9.11, “ Tabbed page Links ” in eCATALOGsolutions Manual.

Example:

In following example, depending on selection of a characteristic, different accessory parts are displayed.

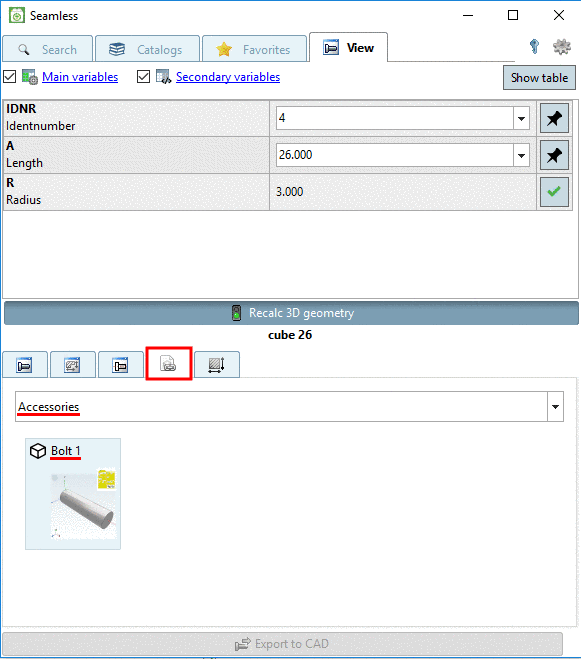

Selection of characteristic with IDNR = 3

Selection of characteristic with IDNR = 3

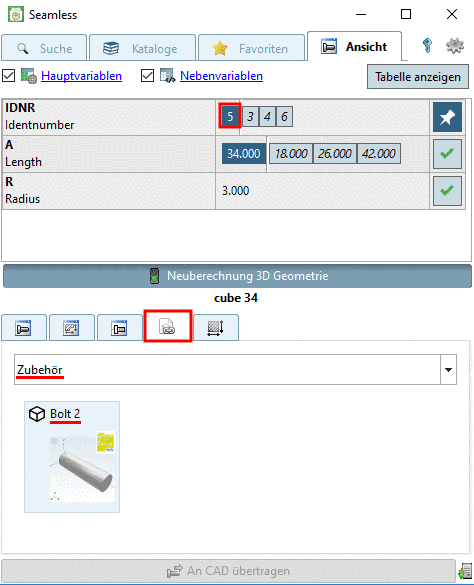

Selection of characteristic with IDNR = 5

Selection of characteristic with IDNR = 5

The following exemplary figure on the left shows a filtered accessory part. That means, only certain characteristics of the accessory part correspond to the basic part. Here, only parts with IDNR 1 and 2 are displayed. If the filter becomes deactivated by clicking on the icon, all characteristics are displayed (here, parts with IDNR 1, 2, 7 and 8).

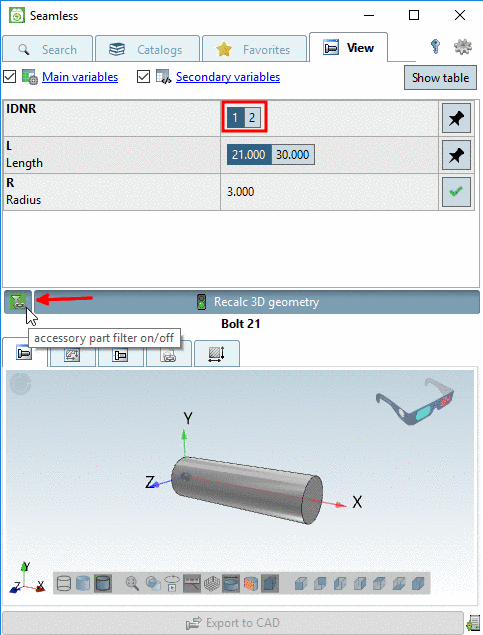

Accessory part filter on

Accessory part filter on

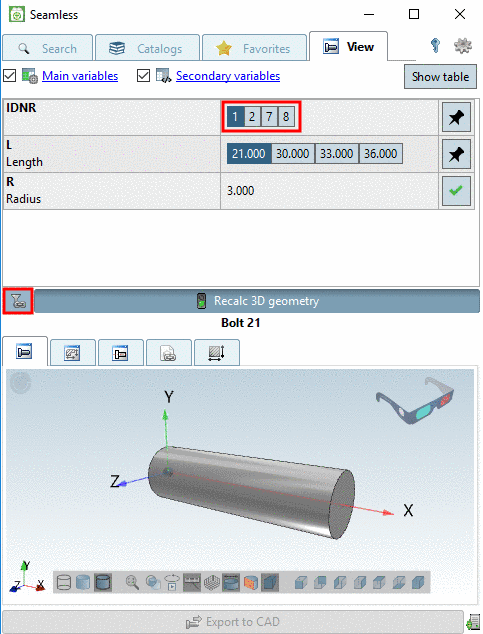

Accessory part filter off

Accessory part filter off
