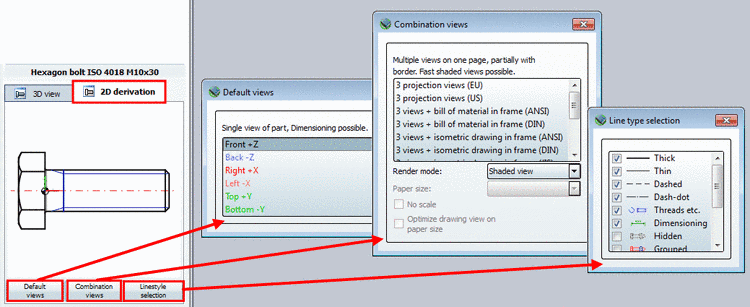

In order to transfer the part to a 2D CAD system, a 2D derivation has to be created. Click on the tab 2D derivation.
The following setting options are available for creating the 2D derivation:
Default views (detailed information on this is found under Section 3.1.10.1.1, “ Standard views ”.)
Combination views (detailed information on this is found under Section 3.1.10.1.2, “ Combination views ”.)
Line type selection (detailed information on this is found under Section 3.1.10.1.3, “ Settings / visibility ”.)
By clicking on the respective button, the according dialog box opens.
Information on all context menu commands is found under Kontextmenüs: 3D / 2D / Technische Angaben.
