10.4.4.  Technical details tabbed page
Prev  Next

10.4.4.  Technical details tabbed page

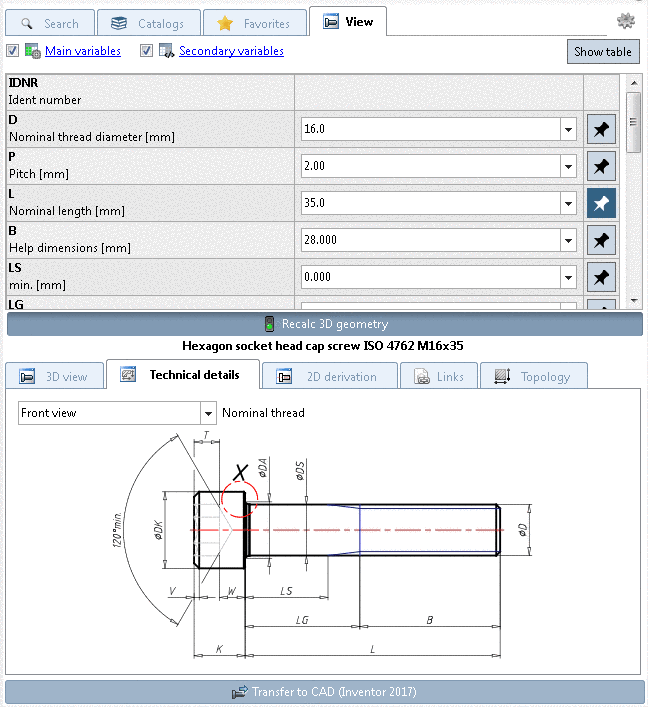

On the Technical details tabbed page you can find Dimensioning views (e.g. Front view, Side view) and Display mode (e.g. Nominal thread or possibly Core diameter) .

If selection options are available, select the desired option in the list field.
