The Zuken Component Cloud for E3.series provides online access to free, validated, high-quality electrical component data to users of Zuken’s E3.series electrical design tools.

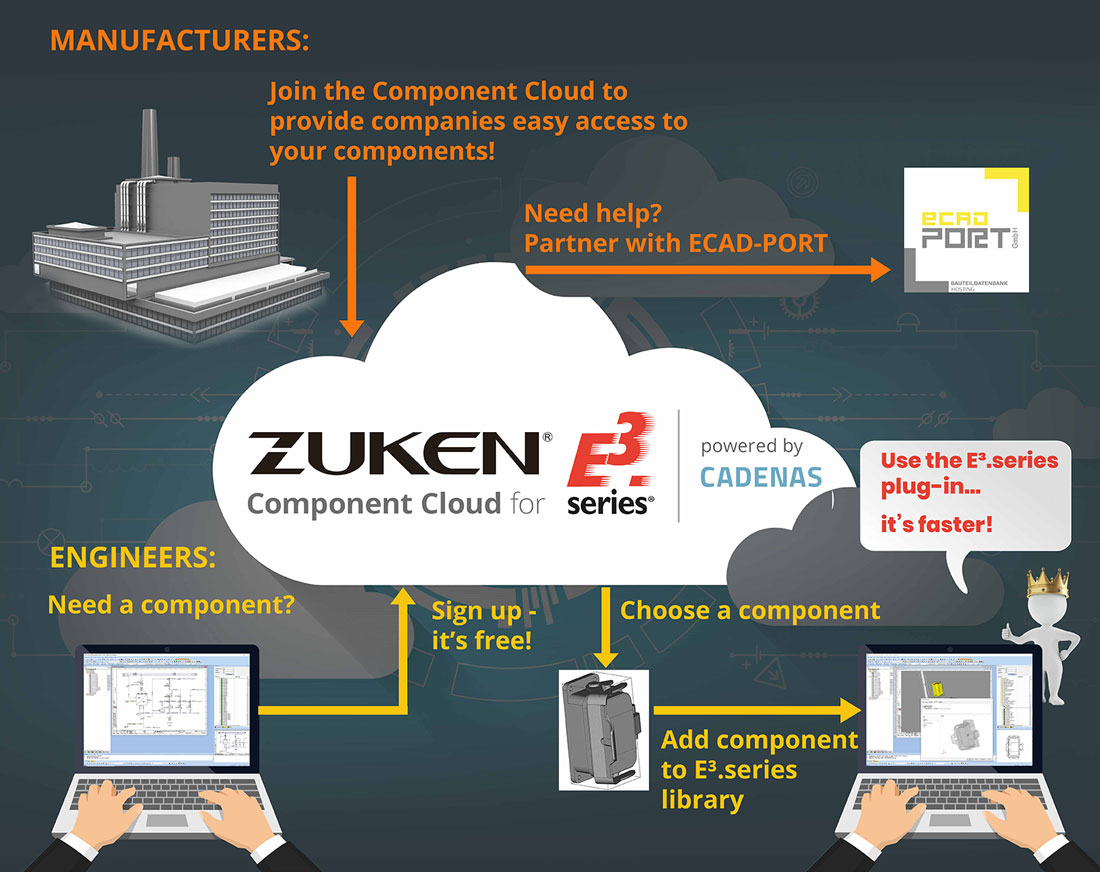

The Zuken Component Cloud for E3.series is provided through a cooperation with CADENAS, a leading provider of online component libraries. Libraries are provided directly by the manufacturers of the respective electronic components. Each library entry is classified into one of three qualification levels.
This movie illustrates how to add missing parts to your E3.series database from the Component Cloud, using the E3.series plugin
Digital parts catalogs are available directly in Zuken’s CAE software and the required parts can be inserted with just a few clicks. The library data contain all important information like attachment points, symbols, alternative views, technical parameters, classifications, part numbers, etc.
In addition to material master data, all necessary electrical information is provided which is required for the creation of the circuit diagram, the switch cabinet layout, and wiring and for the creation of the cable harness.
Parts are provided in 3 certification levels labeled with a seal
Geometric component data
Geometrical Component data plus electrical characteristics
Comprehensive Classification

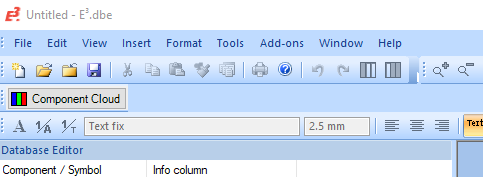

Zuken provides an optional free plugin application for E3.series customers that allows the user to access the Zuken Component Cloud directly from the E3.series user interface. Components loaded from the cloud will be automatically transferred to the component database without manual intervention.
