The CableRecursiveComposition (CNSELEK|8|1) feature contains the recursive-hierarchical linking of the individual cable elements.

The reading happens from the left to the right and top down.

Example 1 (to illustrate the syntax of CableRecursiveComposition)

Compact depiction analogously to the field entry.

{Cable_ID|0{CableBundle_ID|1{CableCore_ID|1,CableCore_ID|2,CableShield_ID|SH1
{CableTwist_ID|TW1{CableCore_ID|3,CableCore_ID|4}},CableShield_ID|SH2{CableTwist_ID|TW1
{CableCore_ID|5,CableCore_ID|6}}},CableBundle_ID|2{..}}}

Cable _ID|0 is the root element.

The root element covers 2 cable bundle.

Cable bundle 1 contains 6 cores.

Core 1 and 2 do not have a shield and are not twisted.

Core 3 and 4 have a shield and are twisted.

Core 5 and 6 also contain a shield and are also twisted.

Following depiction is subdivided in order to make the logic of syntax more comprehensible.

{Cable_ID|0{ CableBundle_ID|1{..} CableBundle_ID|2{..} }} Content of CableBundle_ID|1{..}: CableBundle_ID|1{ CableCore_ID|1, CableCore_ID|2, CableShield_ID|SH1{..}, CableShield_ID|SH2{..}} Content of CableShield_ID|SH1{..}: CableShield_ID|SH1{CableTwist_ID|TW1 {CableCore_ID|3, CableCore_ID|4}} Content of CableShield_ID|SH2{..}: CableShield_ID|SH2{CableTwist_ID|TW1 {CableCore_ID|5, CableCore_ID|6}} The logic of the content of CableBundle_ID|2 is analogously.

Example 2 (to clarify the representation in E3)

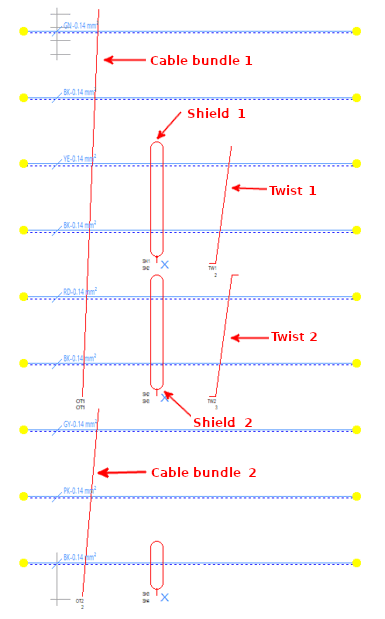

Following figures exemplarily show the structure of a more complex cable:

Example E3: Component - Tree

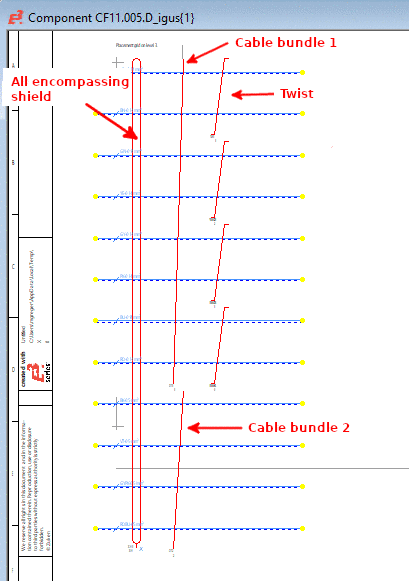

Example E3: Component - Graph

The outer jacket contains the part name.

On the first level, the cable consists of a all-encompassing shield (SH).

This contains two cable bundles named 1 and 2.

Cable bundle 1 contains four twists named 1, 2, 3 4,

Cable bundle 2 contains four not-twisted cores.
