As soon as the function Mark dependent elements is activated, the dependent elements are marked yellow in the corresponding docking windows. This can be Base rotate or Sketch in the 3D history [3D History], for example, but also in the Sketch history.

Example 1:

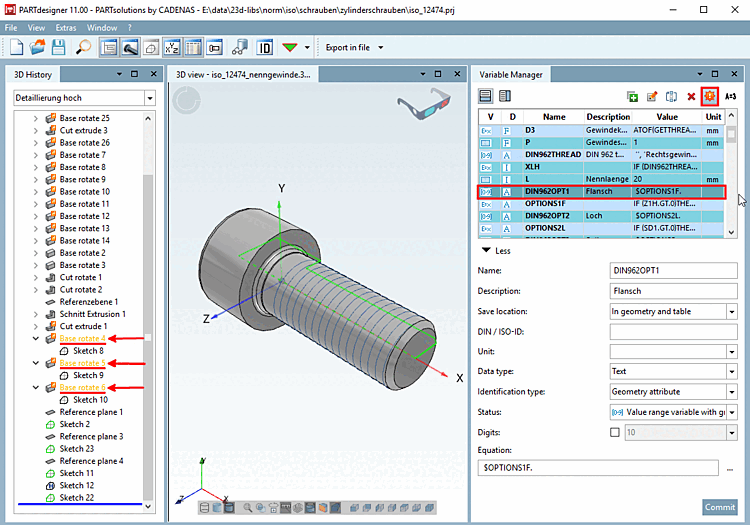

After selecting the variable DIN962OP1, the affected elements Base rotate in which this variable occurs are marked in the 3D history [3D History].

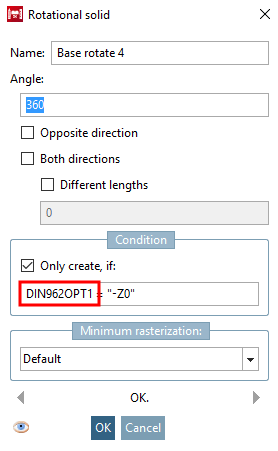

You can see how the variables are used in the open Rotation body [Rotational solid] dialog box.

Example 2:

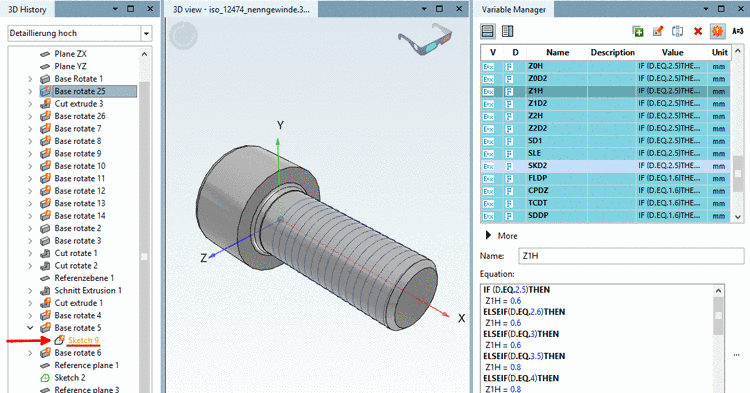

After selecting the variable Z1H, the affected sketch is highlighted in yellow in the 3D history [3D History].

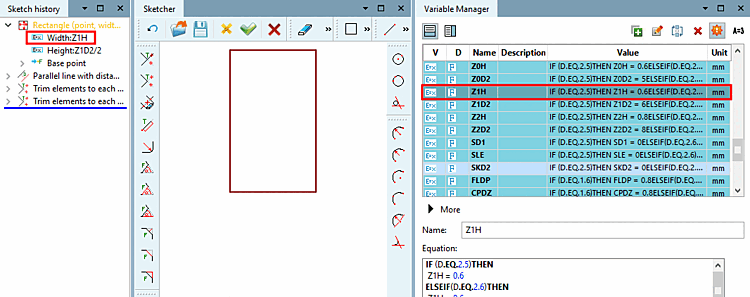

You can see the use of the variables in the sketch history [Sketch history].
