7.17.4.  Open

[Note]Note

If the QA mode is active ( PARTproject -> Extras -> Settings [Preferences...]... -> General -> Activate Q [Activate QA] A), the direct opening or creation of files in the PARTdesigner is not permitted. Editing must be started via PARTproject to start editing.

In QA mode, the menu items and buttons New, New table and Open remain inactive, or a corresponding message appears.

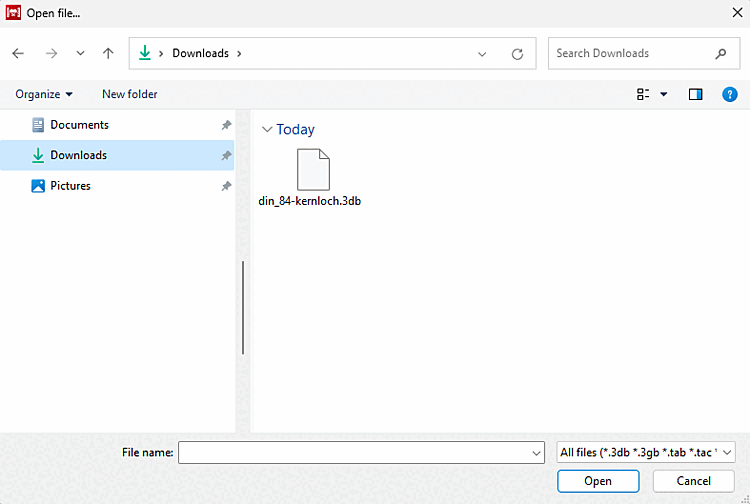

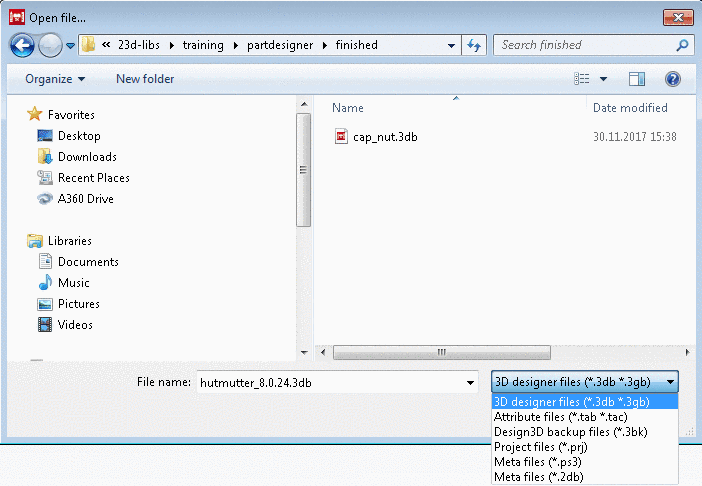

Using the Open button or the menu command File -> Open, you can open various file types:

[Note]Note

The user interface is adjusted according to the opened file type.

[Note]Note

Only files corresponding to the set file format are displayed.

[Caution]Caution

Save the current model/project before opening a new file.

The individual file formats

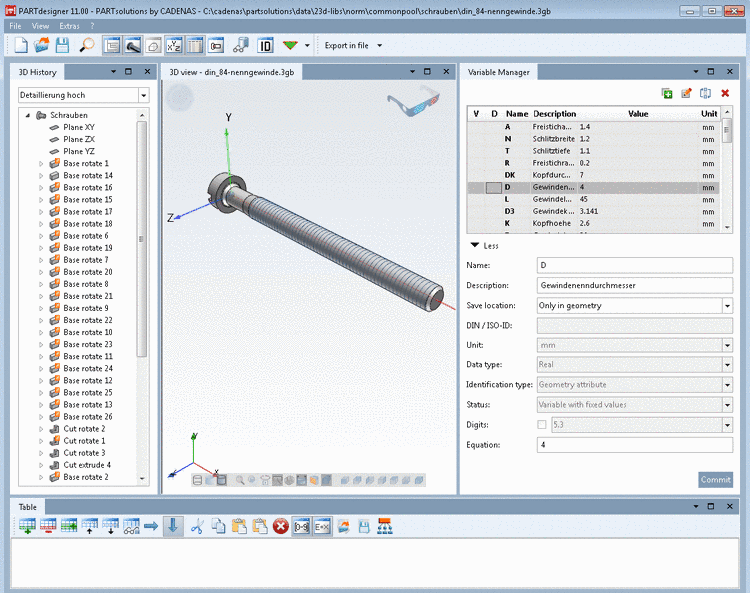

  • 3D designer files (*.3db *.3gb) , *.dbs

    [Note]Note

    The table is generated on the basis of the variables [Variables] and values [Values] (designer variables) already created during geometry creation.

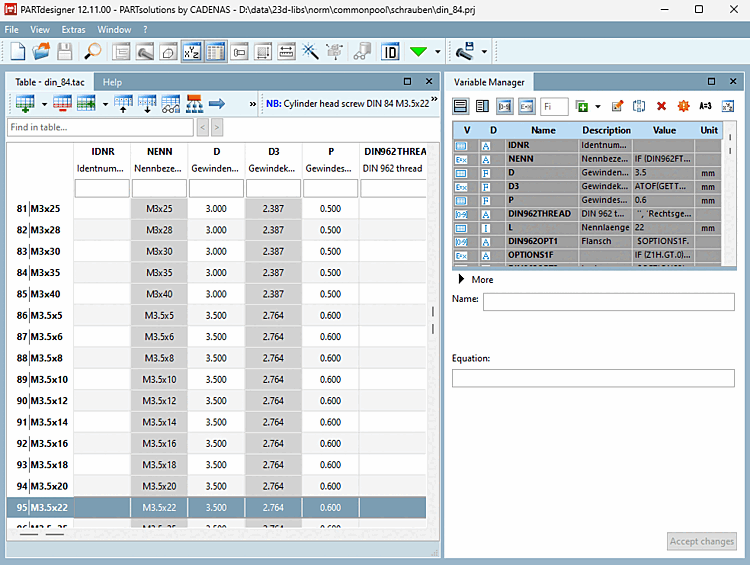

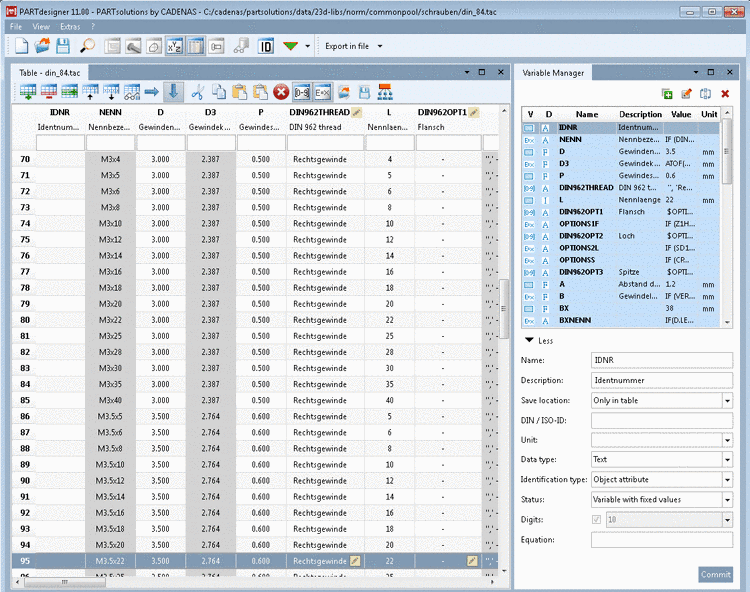

  • Attribute files (*.tab *.tac)

    [Note]Note

    * .tac files consist of an encrypted character string and can only be accessed if you have a corresponding license [License].

  • Design3D backup files (*.3bk)

  • Project files (*.prj)

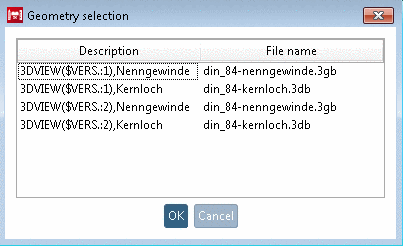

    When a project file is opened, the Geometry selection dialog box opens.

    Based on the tab/tac file allocated to the project, all corresponding 3db/3gb files are displayed.

    Select the desired geometry (*.3db/*.3gb) and confirm with OK.

    [Note]Note

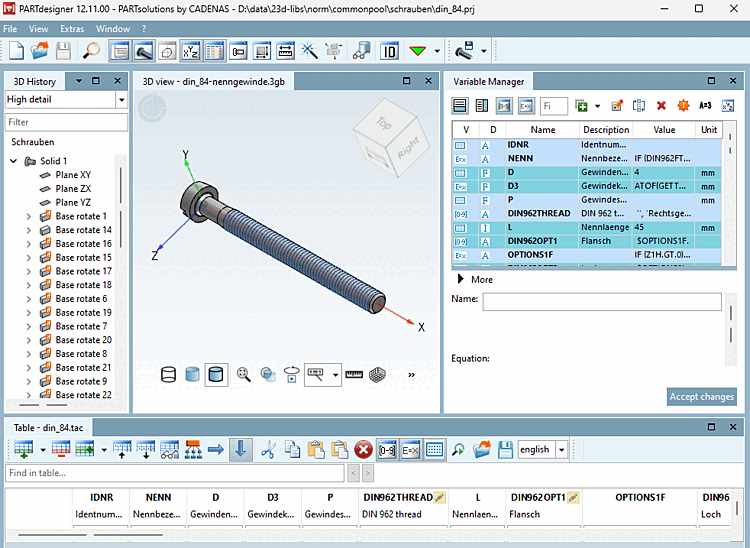

    When opening the project file both 3db and tab/tac file is started.

  • Meta files (*.2db)

  • Meta files (*.ps3)
