1.3. Section [CreationOptions(is3d)...] - Key "FileName(is3dAsm)"

Represents the name of the document.

?GetObject(iface.calcnameservice).start(0).Format(<CATALOG>_<GenName>).reptable().
 toFileName(_).RepSeq( ,_).value()+.CATProduct

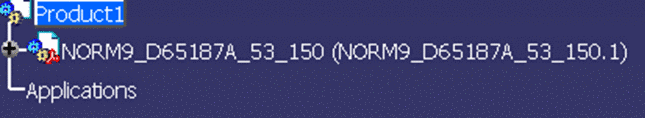

Examples of filename flag usage:

Standard name and CATALOG-Prefix

FileName(is3dPart)=?GetObject("iface.calcnameservice").start(0).Format("<CATALOG>
_<GenName>").toFileName("_").RepSeq(" ,_").value()+".CATPart"

FileName(is3dAsm)=?GetObject("iface.calcnameservice").start(0).Format("<CATALOG>_<GenName>")
 .toFileName("_").RepSeq(" ,_").value()+".CATProduct"

Short name and CATALOG-Prefix

FileName(is3dPart)=?GetObject("iface.calcnameservice").start(0).Format("<CATALOG>
 _<GenShortNAME(25)>").toFileName("_").RepSeq(" ,_").value()+".CATPart"

FileName(is3dAsm)=?GetObject("iface.calcnameservice").start(0).Format("<CATALOG>
_<GenShortNAME(25)>").toFileName("_").RepSeq(" ,_").value()+".CATProduct"

Standard name

FileName(is3dPart)=?GetObject("iface.calcnameservice").start(0).Format("<ATTR(NB)>")
 .alnum("").add("").value()+".CATPart"

FileName(is3dAsm)=?GetObject("iface.calcnameservice").start(0).Format("<ATTR(NB)>")
 .alnum("").add("").value()+".CATProduct"
