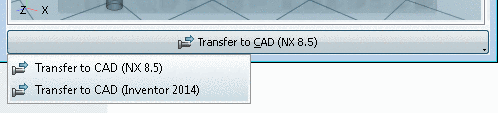

On the tabbed page View, at the bottom the Transfer to CAD button is displayed.
If several CAD systems are in use you can select the desired one in the opened list field.
The part is directly transferred to the CAD system. The placement dialog box opens (see Section 2.6.1, “ Insert model (3D) from the Standard and supplier parts library ”).
